GARLOCK GYLON 3504

Garlock GYLON 3504 is a high-performance gasket material that has gained recognition for its exceptional sealing capabilities in various industrial settings. Engineered with a unique PTFE (polytetrafluoroethylene) structure, this gasket material offers outstanding chemical resistance, allowing it to effectively seal against a wide range of aggressive media, including acids, solvents, and corrosive fluids. GYLON 3504's surface is designed to conform easily to irregular flange surfaces, creating a tight and reliable seal even in challenging conditions. Its PTFE construction also imparts high thermal stability, making it suitable for applications involving extreme temperatures. GYLON 3504 gaskets are commonly used in industries such as chemical processing, petrochemicals, pharmaceuticals, and more, where dependable sealing is crucial to prevent leaks and ensure operational safety. With its reputation for quality and performance, GYLON 3504 is a preferred choice for sealing critical connections, particularly in situations where chemical resistance and durability are paramount.

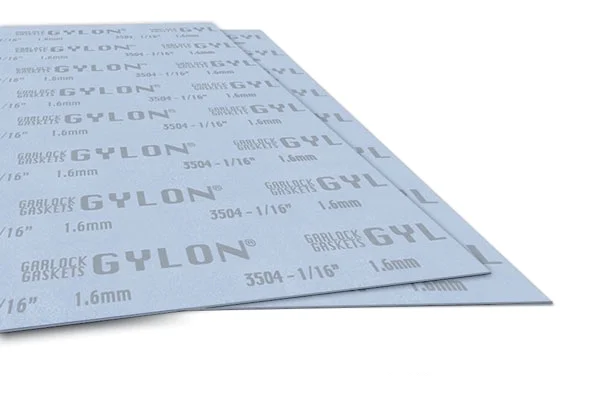

The GYLON® Style 3504 gasket is made of PTFE with aluminosilicate microspheres. It is designed for use in moderate concentrations of acids, caustics, hydrocarbons, refrigerants, and more.

Available in sheet or cut gasket form

  • Color: Blue

  • PTFE with aluminosilicate microspheres

  • Meets ABS, FDA and USP specifications

  • Min. Temperature: -450°F / -268°C

  • Max. Temperature: 500°F / 260°C

  • Max. Pressure: 800 PSI / 55 bar

  • Maximum PxT 1/16: 350,000 °F x PSIG / 12,000 bar x °C

  • Maximum PxT 1/8: 250,000 °F x PSIG / 8,600 bar x °C
