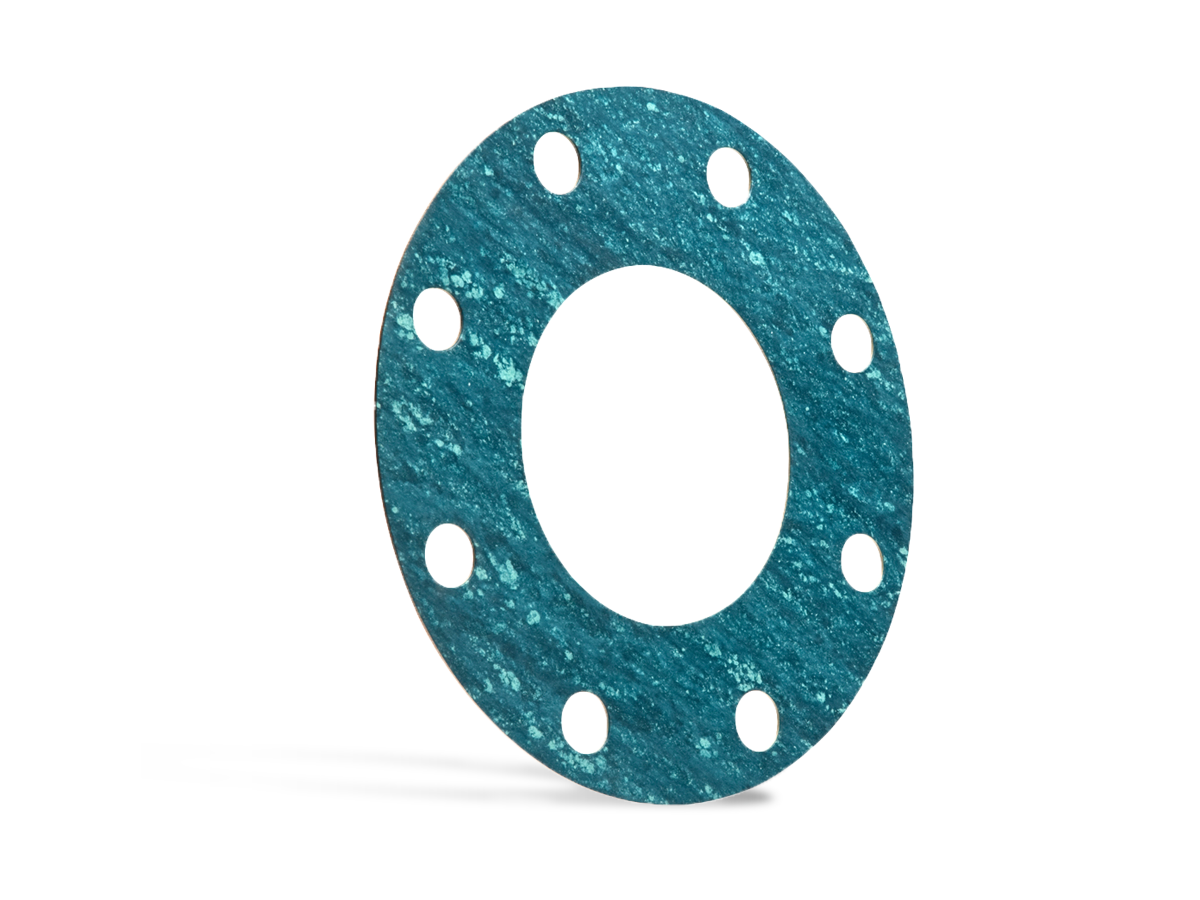

GARLOCK multi-swell 3760

Garlock MultiSwell 3760 is a specialized gasket material known for its unique swelling properties that provide exceptional sealing performance in various environments. Engineered with a combination of aramid fibers and a nitrile binder, this gasket material is designed to expand when in contact with various fluids, ensuring a tight and reliable seal even in applications where the sealing surface may not be perfectly smooth or uniform. MultiSwell 3760's swelling capability allows it to effectively fill gaps and imperfections, making it particularly useful for flanges that have irregularities or are subject to vibration. This gasket material is commonly used in industries such as oil and gas, water treatment, and chemical processing, where dependable sealing is essential to prevent leaks and maintain system integrity. MultiSwell 3760 is a trusted choice for applications where traditional gaskets might struggle due to surface irregularities, providing an innovative solution for achieving effective seals.





Garlock's 3760 creates additional gasket load when the gasket comes in contact with oil or water. Multi-Swell is twice as compressible as standard fiber gaskets and will conform to irregular surfaces.

Tensile Strength (psi):   1000

Temperature MAX: 400 degrees F continuous

Pressure MAX: 500 psi

P x T Max: 1/32", 1/16" 150,000, 1/8" 100,000

Density: 85lbs/cubic ft

Color: Blue, branded

Weight (SF, 1/8”): 1.12 lbs
